2030L Inkjet printer corrugated box printing machine uv printer for sale

Short Description:

Japanese imported Ricoh printhead for industrial production

CMYK W LC LM and varnish optional for glossy surface and high quality printing

3D Embossing effects printing technology available

Auto height detection technology to detect print media thickness automatically

Automatic anti-static design to avoid dust ink drops flying (optional)

Advanced printhead anti-crash system to avoid the risk of a collision between printer carriage and material


Product Detail

Product Tags

详情

Product Description

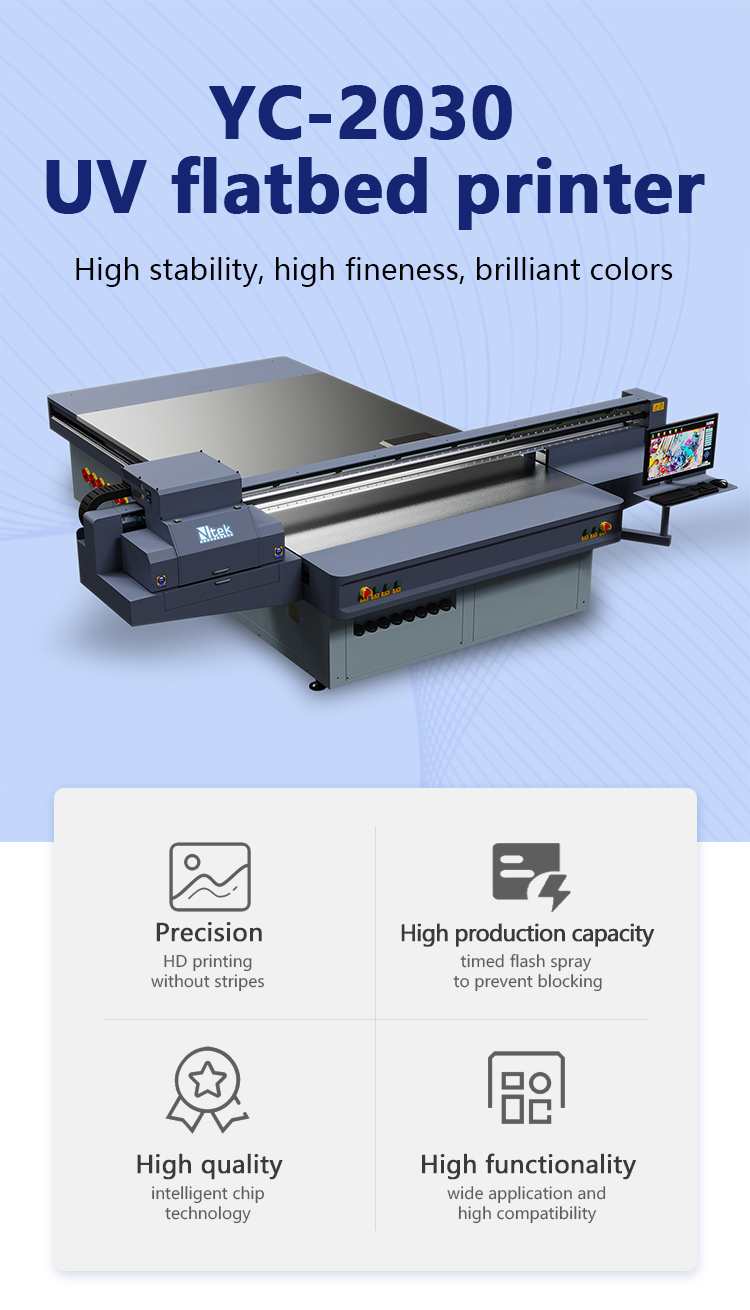

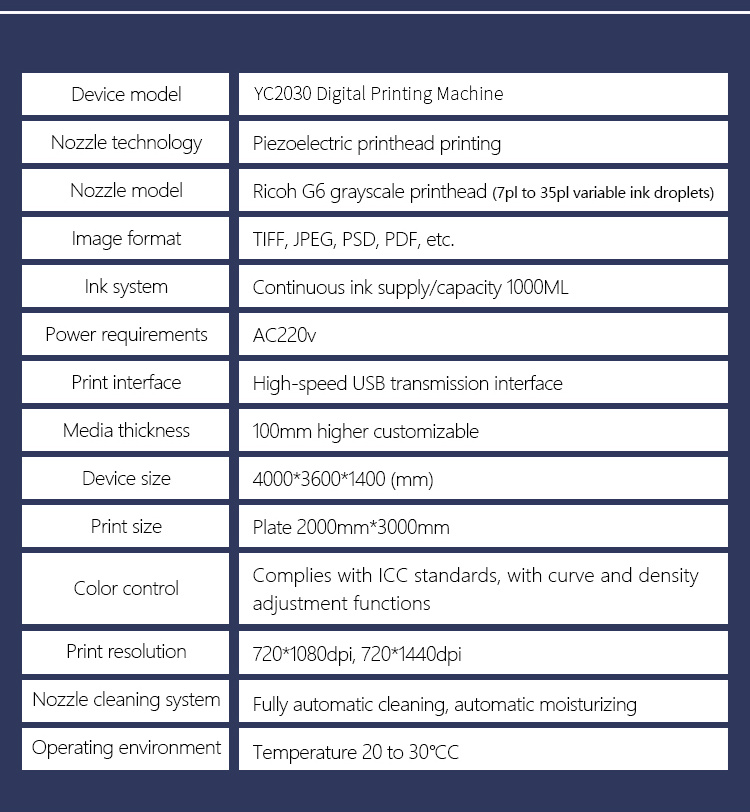

NTEK YC2030L UV flatbed printer is a high precision digital printing machine designed for personalized products, print size is 2000*3000mm and the printing speed is 15sqm/h-30sqm/h, to meet the processing enterprises for its high precision and personalized requirements.

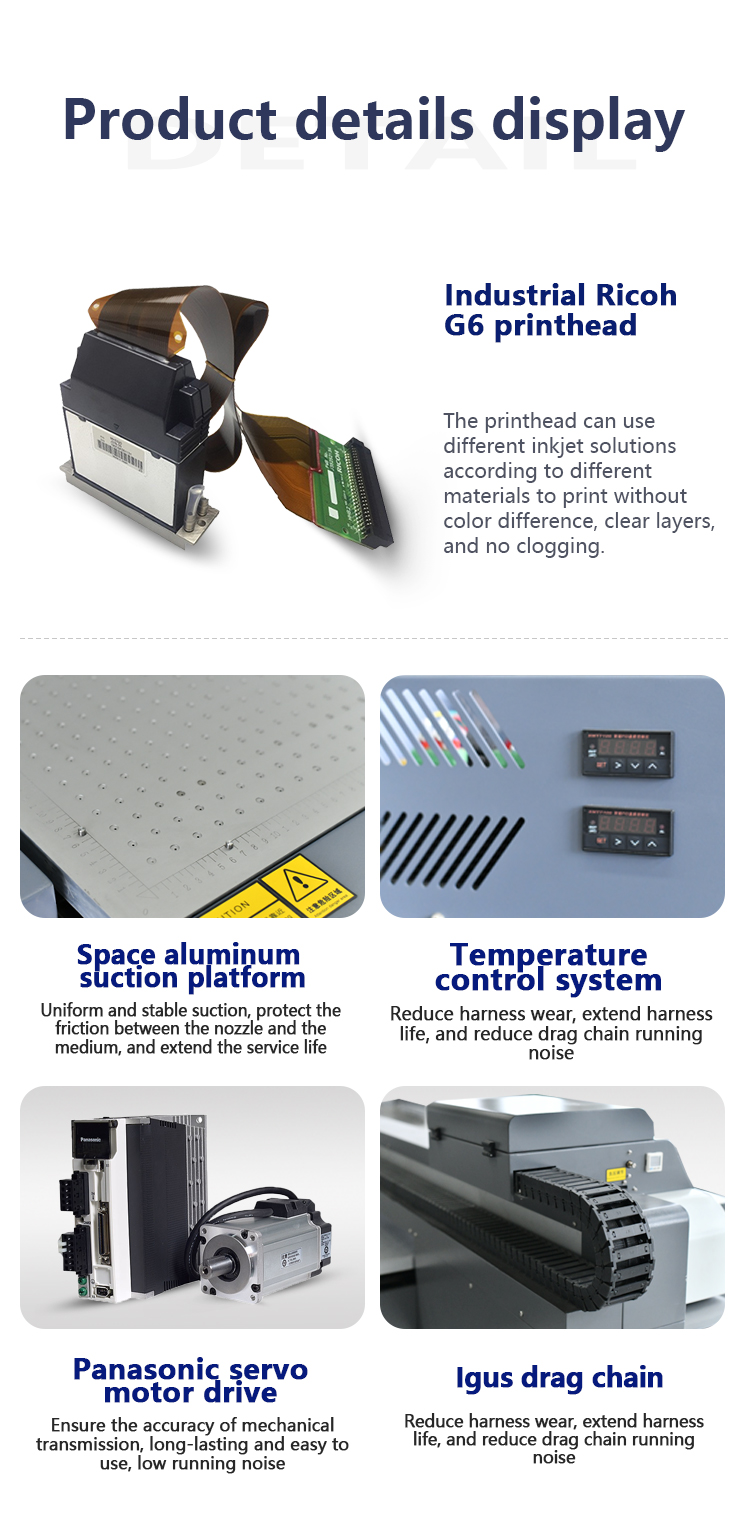

Using grayscale Ricoh stainless steel inner heating industrial head, fast speed, high resolution. Suitable for long working hours, 24 hours operation. In addition, the double-stage precision screw and imported Panasonic servo synchronous motor are adopted to ensure that the screw runs synchronously on both sides of the Y axis.

It has a safety anti-collision sensor that re-detects the media environment and protects the print head from compression hazards. After that, you can restore the printer, which will help you save the media.

YC2030L for wide range application, is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc.

With the function of automatic measurement of induction distance, nozzle and medium, eliminating the procedure of measuring the thickness by yourself.

This machine also has automatic anti-static design to avoid the splash of ink dusk, thus reducing the static electricity caused by the splash of ink, and improving the printing quality of some substrates.

In addition, the optional white ink mode and varnish mode can also light up the multi-function of YC2030L.

The registration pin can be equipped with vacuum table that help to keep object in place easily at the zero position. And cleaning system is positive pressure Cleaning.

The guide rail is made of Taiwan HIWIN and the maximum thickness of media is 100mm, It can also be customized if you need it. It is worth mentioning that we can provide warranty service except for consumables within 12 months.

More Applications

Glass Bottle

Glass Photo

Fiber

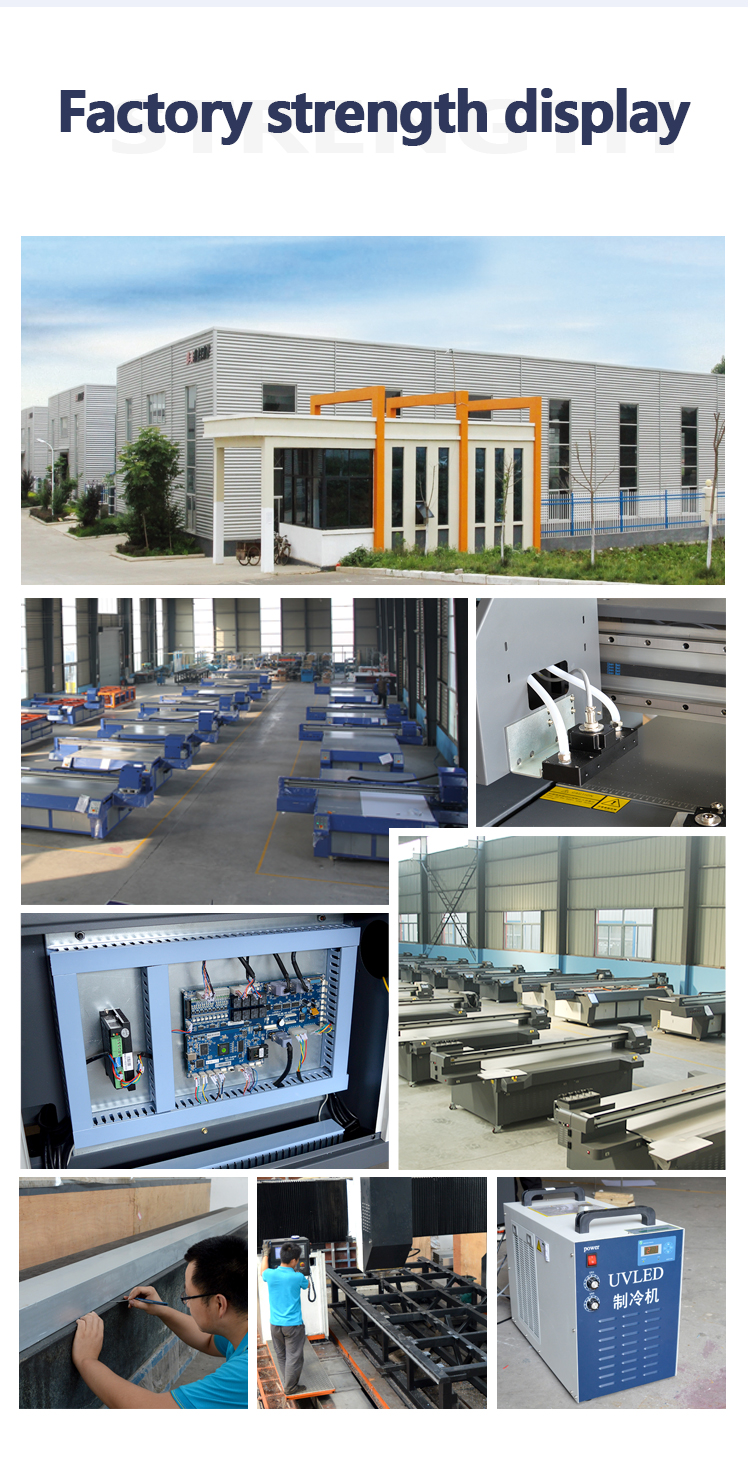

Our Exhibition & Team
