CHOCOLATE PACKAGING FLOW PACKING MACHINE- SOONTRUE SZ180
Application:
Its suitable to pack food product like: Biscuits, Cookies, Crackers, Muffins, Cake, Bread, Bun, Sandwiches, Wafer packaging etc.
Pack Bar products like: Breakfast bars, Candy bars, Chocolate bars,Crisped rice bars, Energy bars, Nutrition bars etc.
Pack Daily necessities like: Napkin tissue packing machine, Toilet paper packaging, Soap flow packing machine, Washing sponge packaging etc.
Product Features
|
Model |
SZ180 (Single Cutter) |
SZ180 (Double Cutter) |
SZ180 (Triple Cutter) |
| Bag Size: Length | 120-500mm | 60-350mm | 45-100mm |
|
Width |
35-160mm | 35-160mm | 35-60mm |
|
Height |
5-60mm | 5-60mm | 5-30mm |
| Packing Speed | 30-150bags/min | 30-300bags/min | 30-500bags/min |
| Film Width |
90-400mm |
||
| Power Supply |
220V 50Hz |
||
| Total Power | 5.0kW | 6.5kW | 5.8kW |
| Machine Weight |
400kg |
||
| Machine Size |
4000*930*1370mm |
||
Main characteristics & Structure features
1. Compact machine structure with smaller footprint area.
2. Carbon steel or stainless steel machine frame with nice appearance.
3. Optimized component design realizing fast and stable packing speed.
4. Servo control system with higher accuracy and flexibility mechanical motion.
5. Different optional configurations and functions meeting different specific requirements.
6. High accuracy of color mark tracking function.
7. Easy to use HMI with memory function.
Optional accessories

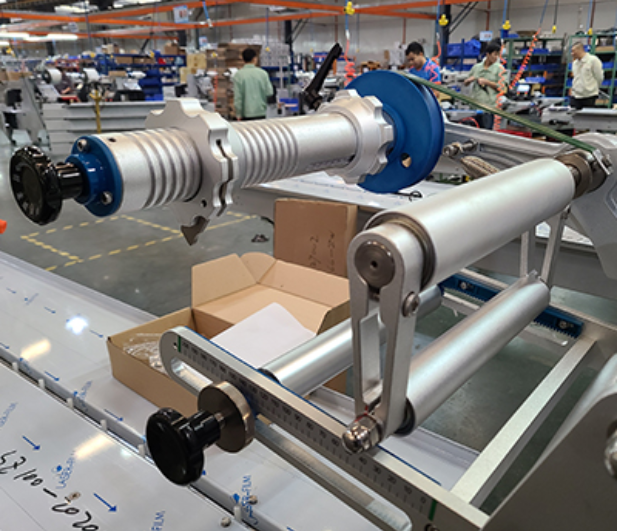

Film loader
Top mounted film loader, with optional double film loader, auto centering and auto splicing. Optimized component design realizing fast and stable packing speed.

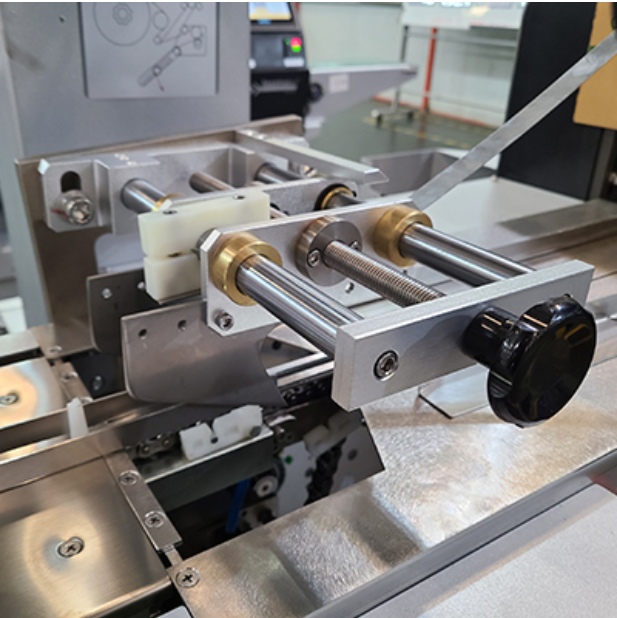

Bag former
Adjustable bag former with high flexibility for film width 90-370mm

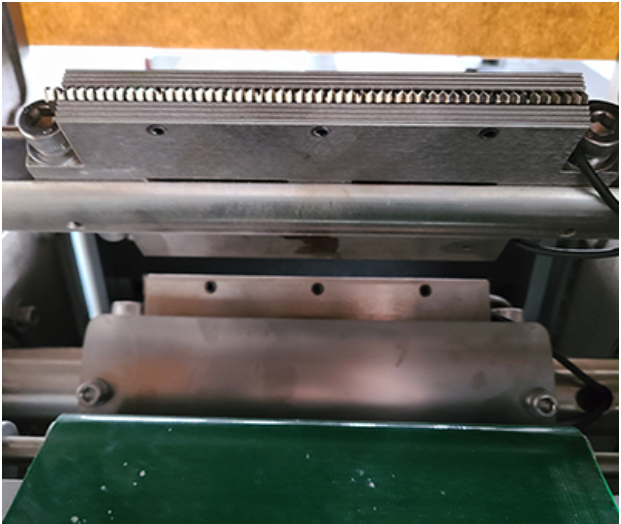

End sealing assembly
Standard double cutter end sealing,with optional single cutter and triple cutters.

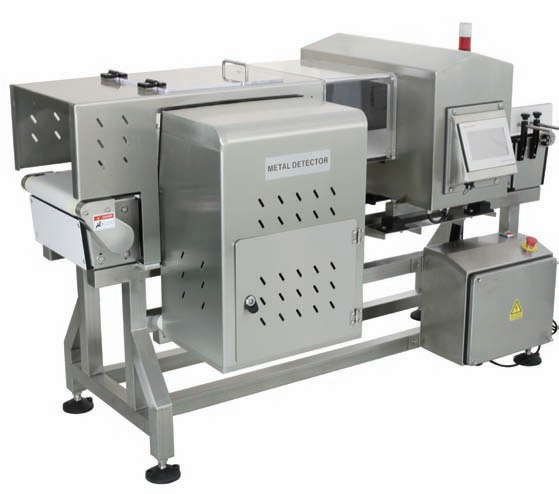

Light Duty Metal Detector
- Excellent performance IP65 metal detector head, intelligent product learning algorithms, capable for metal detection of diffcult product, various supporting devices such as quick belt release.
- Option of European and US standard output safety protection, conveying capacity, rejection modes.
